This unit (CS-01i Heavy Duty cable guard ) is specifically designed for  cable management where cables or hoses need to be run out over roadways or in pedestrian areas and a trip risk exists. It also allows heavy vehicles to drive over these cables or hoses without damaging them.

This product sells for about one third  the cost of other comparable products.

Specifications:

• Dimensions: 900mm(L) x 500mm (W) x 75mm (H)
• Weight: 18.5 KG
• No of Channels: 3
• Channel Dimensions: 55mm(H)  x 65mm (W)
• Weight Loading:   NATA Laboratory Tested to 6.1 T per tyre for 5 minutes ( Equivalent to 24.4T per axle)
• Interconnect System: Male-Female System
• allowing Any Length to be Created
• Patented 5 bar tread surface provides maximum traction
• UV Stabilised
• Non-Conductive

Download the CableSafe CS-01i  PDF Data Sheet Here

Applications Include:

• Traffic Management
• Construction
• Factories & Workshops
• Mining
• Entertainment Industry
• Aircraft Maintenance
• Utility Companies
• Jack Up Barges

The main points of difference between this and other products on the market  are the ability to get more cables or  hoses into the channels due to their  size and the overall cost benefit. It is also worth noting that many "similar" products on the Australian market quote weight per piece at 20KG...this is incorrect as the weight is actually 24KG OR MORE per piece. Our 3 channel ramp genuinely weighs 18.5 KG per piece and due to this weight it  is Workcover approved for installation by one person. Items over 20KG that require bending over to install need two people. This is worth noting when considering the total cost of ownership. The width of our product is a true 500mm ... other products quote 590mm to make it seem narrower but the true width is 600mm..almost 2 feet wide!

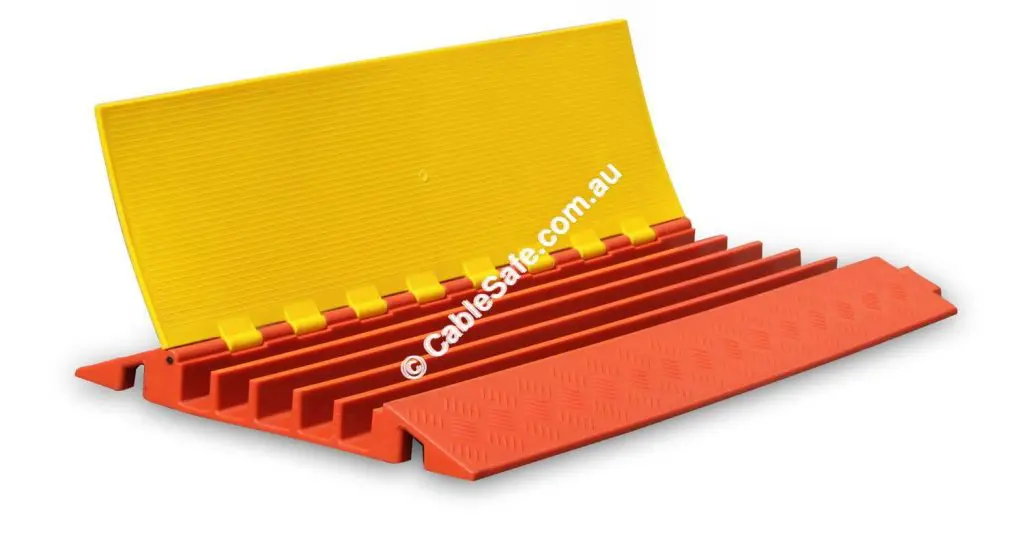

CS-05i  5 Channel Cable Guard

Specifications:

• Dimensions : 900mm long  x 500mm wide  x 50mm high
• Weight: 15.5 KG
• Channel Size: 4 Channels @ 34mm (W) x 36mm (H) and 1 Centre Channel 40mm(W) x 36mm(H)
• Weight Loading: NATA Laboratory Tested to 4.6 T per tyre for 5 Minutes ( Equivalent to 18.4T per axle)
• Connecting System: Integrated Male-Female allowing any Length to be Achieved
• Non-Conductive
• Patented 5 bar tread surface provides maximum traction.
• Inbuilt carry handle makes it easier to carry one unit in each hand.
• UV Stabilised
• Non Conductive
• Very low profile design decreases trip risk significantly compared to other higher profile products.
